tsmethods

1 Introduction

The tsmethods package provides a set of common methods for use in other packages in our framework. Additionally, it also exports plot methods for objects of class tsmodel.predict, which is the output class from all calls to the predict method, as well as for objects of class tsmodel.distribution, which is a subclass within tsmodel.predict providing the simulated or MCMC based forecast distribution.¹ Finally, the package also includes the methods for ensembling distributions. Table 1 below provides the currently exported methods for each of the packages which have been released. We have tried to work with existing S3 methods in the stats package where possible including: summary, coef, logLik, AIC, fitted, residuals, predict and simulate. However, we have also created custom methods such as estimate (for model estimation from a specification object), tsdecompose (for time series decomposition of structural time series type models), tsfilter for online filtering,² tsbacktest (for automatic backtesting) as well as a number of other methods documented in their individual packages.

Table 1: Implemented Methods

methods	tsets	tsissm	tsvets	tsforeign	tsdistributions	tsgam	tsarma	tsgarch	tsmarch
estimate	✓	✓	✓	✓	✓	✓	✓	✓	✓
summary	✓	✓	✓	✓	✓	✓	✓	✓	✓
coef	✓	✓	✓		✓		✓	✓	✓
logLik	✓	✓	✓		✓		✓	✓	✓
AIC	✓	✓	✓				✓	✓	✓
fitted	✓	✓	✓	✓		✓	✓	✓	✓
residuals	✓	✓	✓	✓		✓	✓	✓	✓
plot	✓	✓	✓	✓	✓		✓	✓	✓
tsmetrics	✓	✓	✓	✓		✓
tsspec	✓	✓	✓
tsdiagnose	✓	✓	✓		✓
tsdecompose	✓	✓	✓	✓		✓
tsfilter	✓	✓	✓				✓	✓	✓
tsprofile	✓	✓
predict	✓	✓	✓	✓		✓	✓	✓	✓
tsbacktest	✓	✓	✓	✓		✓	✓	✓
simulate	✓	✓	✓				✓	✓	✓
tsbenchmark	✓	✓	✓
tsreport	✓
tsmoments	✓	✓			✓
tscalibrate	✓	✓
tscor			✓						✓
tscov			✓						✓
tscoskew									✓
tscokurt									✓
tsaggregate			✓						✓
tsconvert				✓
tsequation							✓	✓

2 Ensembling Forecast Distributions

Ensembling in the tsmodels framework proceeds as follows:

• (Separate) models are estimated for either the same series or a set of different series.
• The residuals of the estimated series are collected and the residual correlation is calculated. For very large-dimensional systems (where \(N\) > \(T\)) it is possible instead to use a factor model to extract the correlations, but we leave this for a separate discussion.
• The estimated correlations are then used to generate correlated samples on the unit hypercube (using for instance a copula).
• These samples are then passed to the innov argument in the predict method of each model, at which time they are transformed to normal random variables with variance equal to the estimated model variance.³ A key reason for using uniform variates and transforming them back into normal variates within the predict method is the possible presence of the Box Cox transformation, which requires that the variance be on the transformed scale rather than the final series scale. It was therefore decided that this approach was more general and less prone to user error.⁴ Note that the predict function is no limited to taking innovations as quantiles but can also directly take in standardized variates and an argument is available to denote the type which is passed.
• The predictive distribution, which is generated by simulation, will then be infused with the cross-sectional correlation of the residuals passed to the predict method.⁵
• The predictive distributions are then passed to the ensemble_modelspec function for validation, followed by calling the tsensemble method on the resulting object with a vector of user specified weights.

The next section provides a demonstration of this approach.

3 Demonstration

Step 1: Estimation

suppressMessages(library(tsmethods))
suppressWarnings(suppressMessages(library(tsets)))
suppressMessages(library(xts))
suppressMessages(library(copula))
suppressWarnings(suppressMessages(library(viridis)))
data(austretail, package = "tsdatasets")
y1 <- austretail[,"SA.DS"]
y2 <- austretail[,"ACF.DS"]
spec1 <- ets_modelspec(y1, model = "MMM", frequency = 12)
spec2 <- ets_modelspec(y2, model = "MMM", frequency = 12)
mod1 <- estimate(spec1)
mod2 <- estimate(spec2)

Step 2: Residual Correlation and Copula Construction/Sampling

C <- cor(residuals(mod1), residuals(mod2))
cop <- normalCopula(as.numeric(C), dim = 2, dispstr = "un")
set.seed(100)
U <- rCopula(5000 * 12, cop)
cor(U)

          [,1]      [,2]
[1,] 1.0000000 0.5958815
[2,] 0.5958815 1.0000000

Step 3: Prediction

p1.joint <- predict(mod1, h = 12, nsim = 5000, innov = matrix(U[,1], nrow = 5000, ncol = 12), innov_type = "q")
p2.joint <- predict(mod2, h = 12, nsim = 5000, innov = matrix(U[,2], nrow = 5000, ncol = 12))
p1.indep <- predict(mod1, h = 12, nsim = 5000)
p2.indep <- predict(mod2, h = 12, nsim = 5000)

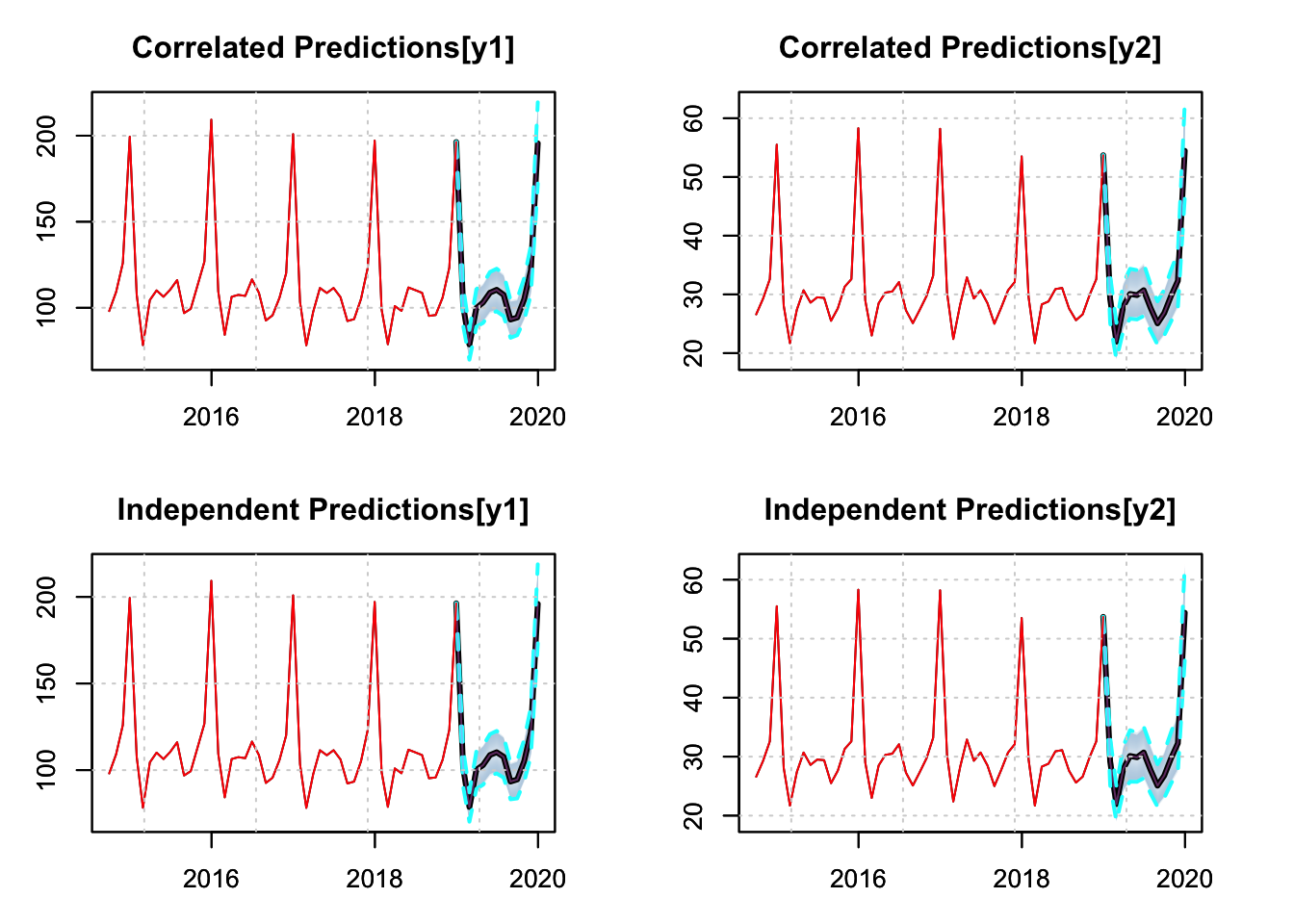

par(mfrow = c(2,2), mar = c(3,3,3,3))
plot(p1.joint, main = "Correlated Predictions[y1]", n_original = 52)
plot(p2.joint, main = "Correlated Predictions[y2]", n_original = 52)
plot(p1.indep, main = "Independent Predictions[y1]", n_original = 52)
plot(p2.indep, main = "Independent Predictions[y2]", n_original = 52)

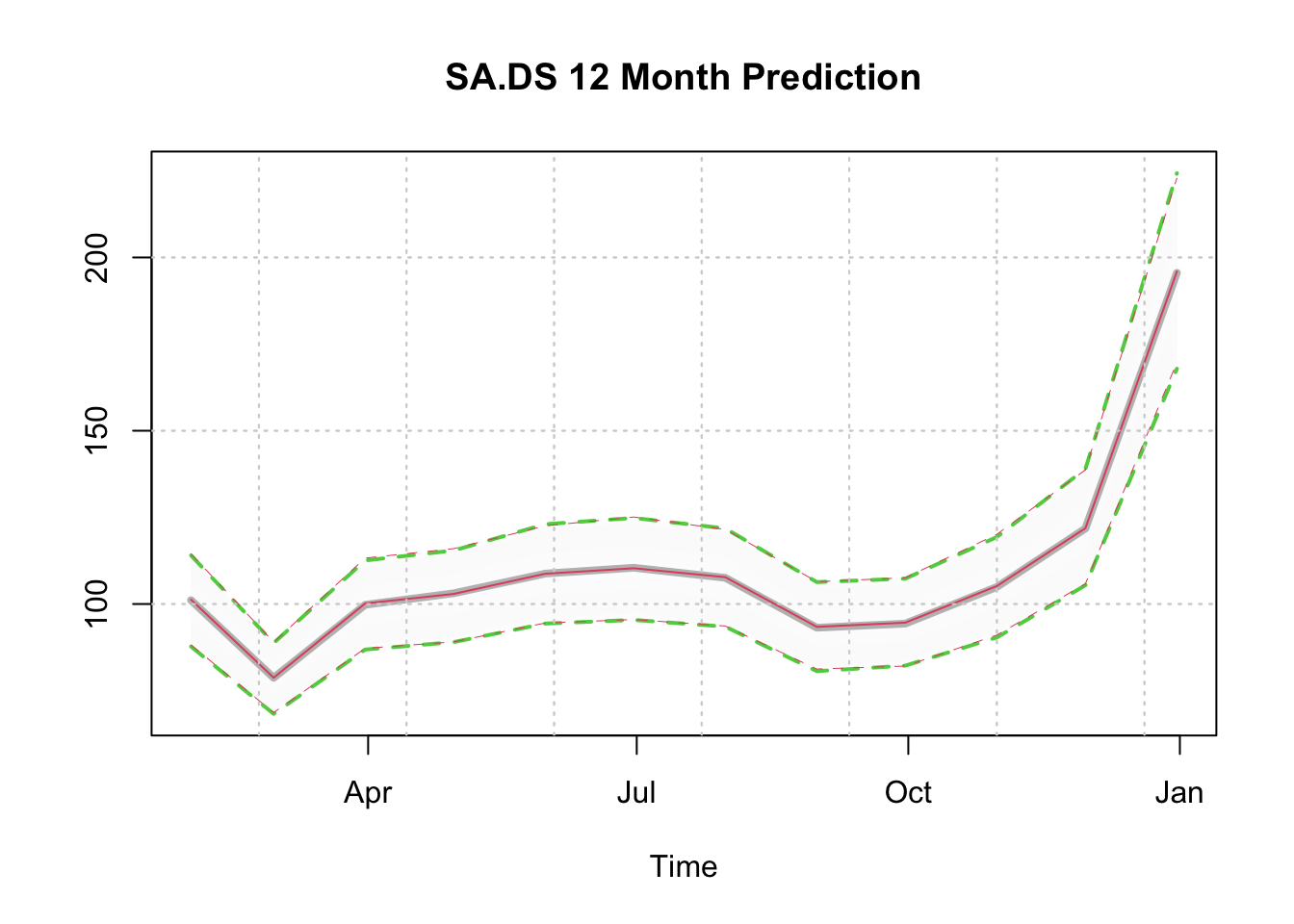

We can also plot the distributions directly, since there is a plot method for both tsmodel.predict and tsmodel.distribution, and we can also overlay one on top of another by using the add = TRUE argument.

plot(p1.joint$distribution, gradient_color = "whitesmoke", median_col = "grey",
     median_width = 4, interval_color = 3, interval_quantiles = c(0.01, 0.99),
     main = "SA.DS 12 Month Prediction")
plot(p1.indep$distribution, add = TRUE, median_col = 2, median_width = 1,
     gradient_color = "whitesmoke", interval_color = 2,
     interval_quantiles = c(0.01, 0.99), interval_width = 0.5)

Evaluation of Predictive Distributions on Forecast Growth Rates

p1.growth.joint <- tsgrowth(p1.joint, d = 1, type = 'diff')
p2.growth.joint <- tsgrowth(p2.joint, d = 1, type = 'diff')
p1.growth.indep <- tsgrowth(p1.indep, d = 1, type = 'diff')
p2.growth.indep <- tsgrowth(p2.indep, d = 1, type = 'diff')

D.joint <- cor(p1.growth.joint$distribution, p2.growth.joint$distribution)
D.indep <- cor(p1.growth.indep$distribution, p2.growth.indep$distribution)
print(round(data.frame(Correlated = diag(D.joint),
                       Independent = diag(D.indep)), 3))

           Correlated Independent
2019-01-31      0.608      -0.021
2019-02-28      0.608      -0.005
2019-03-31      0.605       0.018
2019-04-30      0.614       0.013
2019-05-31      0.606       0.004
2019-06-30      0.610       0.002
2019-07-31      0.613       0.004
2019-08-31      0.617       0.002
2019-09-30      0.632       0.000
2019-10-31      0.616      -0.003
2019-11-30      0.620      -0.009
2019-12-31      0.610      -0.017

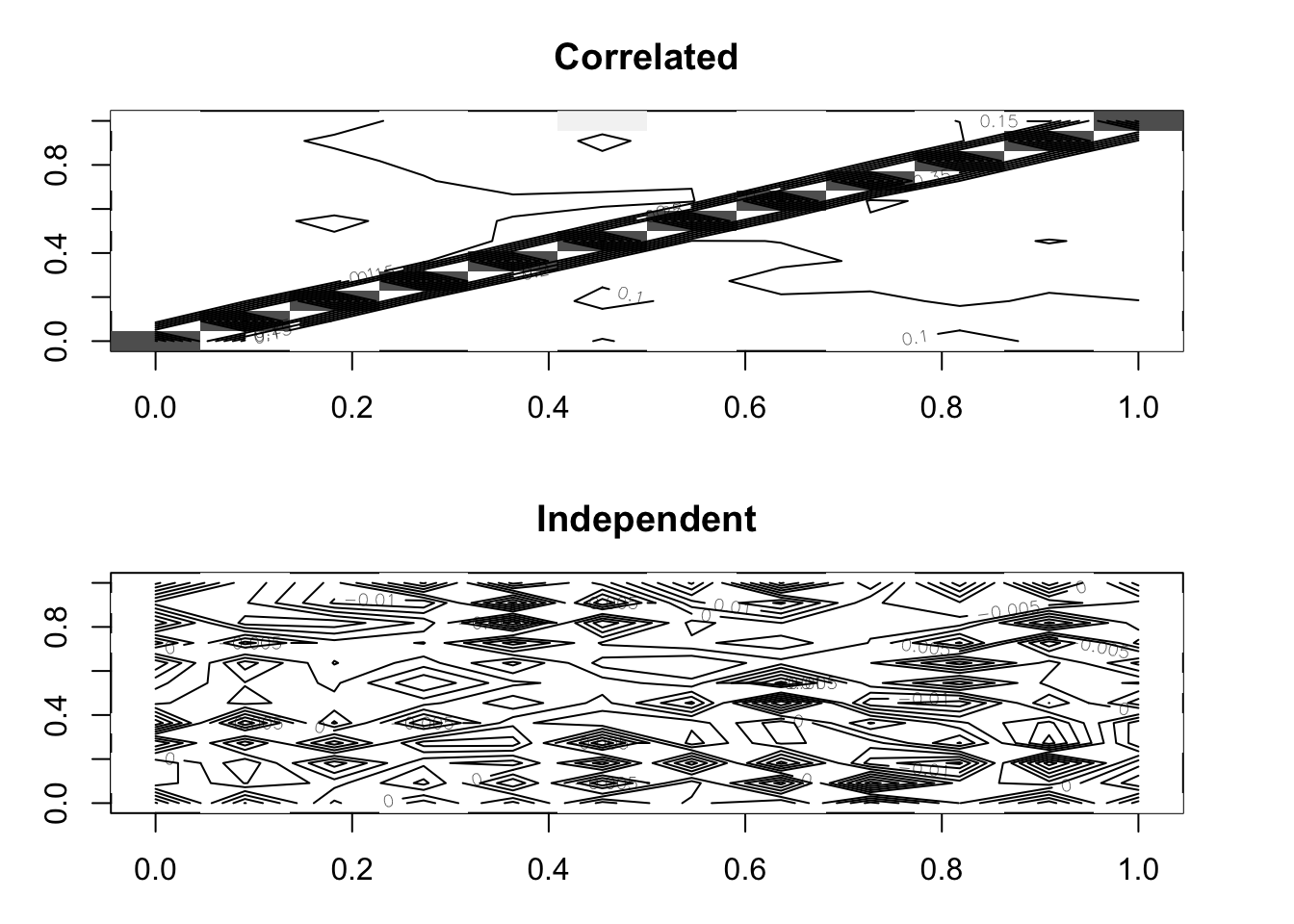

par(mfrow = c(2,1), mar = c(3,3,3,3))
image(as.matrix(D.joint), col = rev(grey(seq(0, 1, length = 25))),
      zlim = c(0, 1), main = "Correlated")
contour(cor(p1.joint$distribution, p2.joint$distribution), add = TRUE,
        drawlabels = TRUE)
image(D.indep, col = rev(grey(seq(0, 1, length = 25))), zlim = c(0, 1),
      main = "Independent")
contour(D.indep, add = TRUE, drawlabels = TRUE)

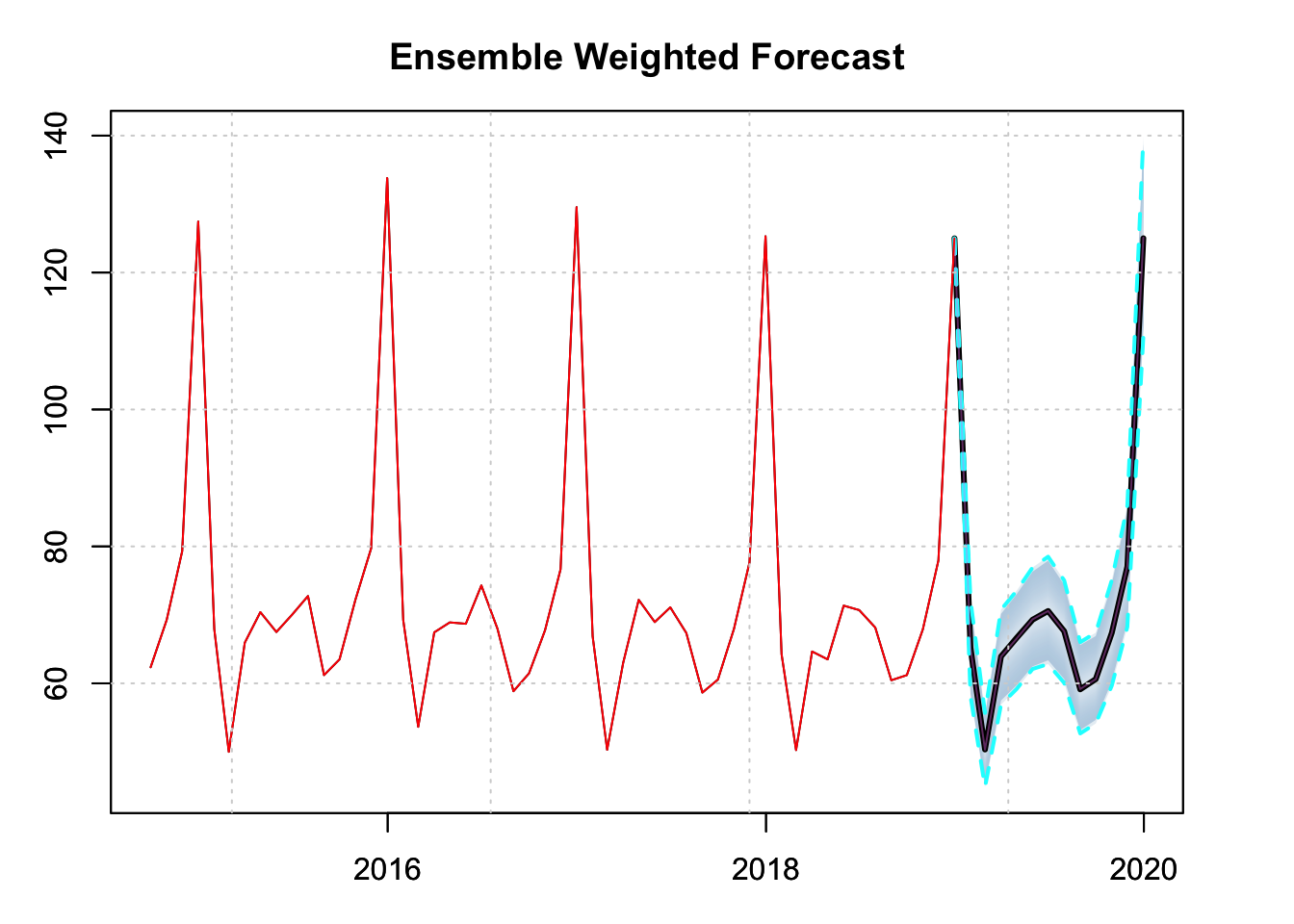

Step 4: Forecast Ensembling

par(mfrow = c(1,1), mar = c(3,3,3,3))
spec.joint <- ensemble_modelspec(p1.joint, p2.joint)
ensemble.joint <- tsensemble(spec.joint, weights = c(0.5, 0.5))
plot(ensemble.joint, main = "Ensemble Weighted Forecast", n_original = 52)

4 Conclusion

The stats package has an extensive set of methods which are generally applicable to statistical models. However, we found that we could benefit from some additional custom methods which could be shared across the packages in the tsmodels framework. We have tried to retain where applicable the standard stats methods such as predict and simulate, but opted to also create some key new methods such as estimate, tsbacktest and tsdecompose as we found that those would be generally useful for our own packages. As the project matures, some of the functionality in tsmethods may be moved to a separate package (such as the plotting and ensembling), and some methods dropped and new ones introduced as the need arises.

Footnotes

1. The current choice of using base R plotting may change in the future to use either ggplot2 or plotly.

2. We have avoided using stats::filter as this is a function rather than a method.

3. The samples can be transformed to any other distribution using the quantile method of the distribution.

4. Additionally the marginal distributions of the individual series may not all be the same, so this approach provides some greater degree of flexibility.

5. This approach works well for models with a single source of error such as ARIMA and ETS, but NOT for multiple source of error models such as BSTS.
